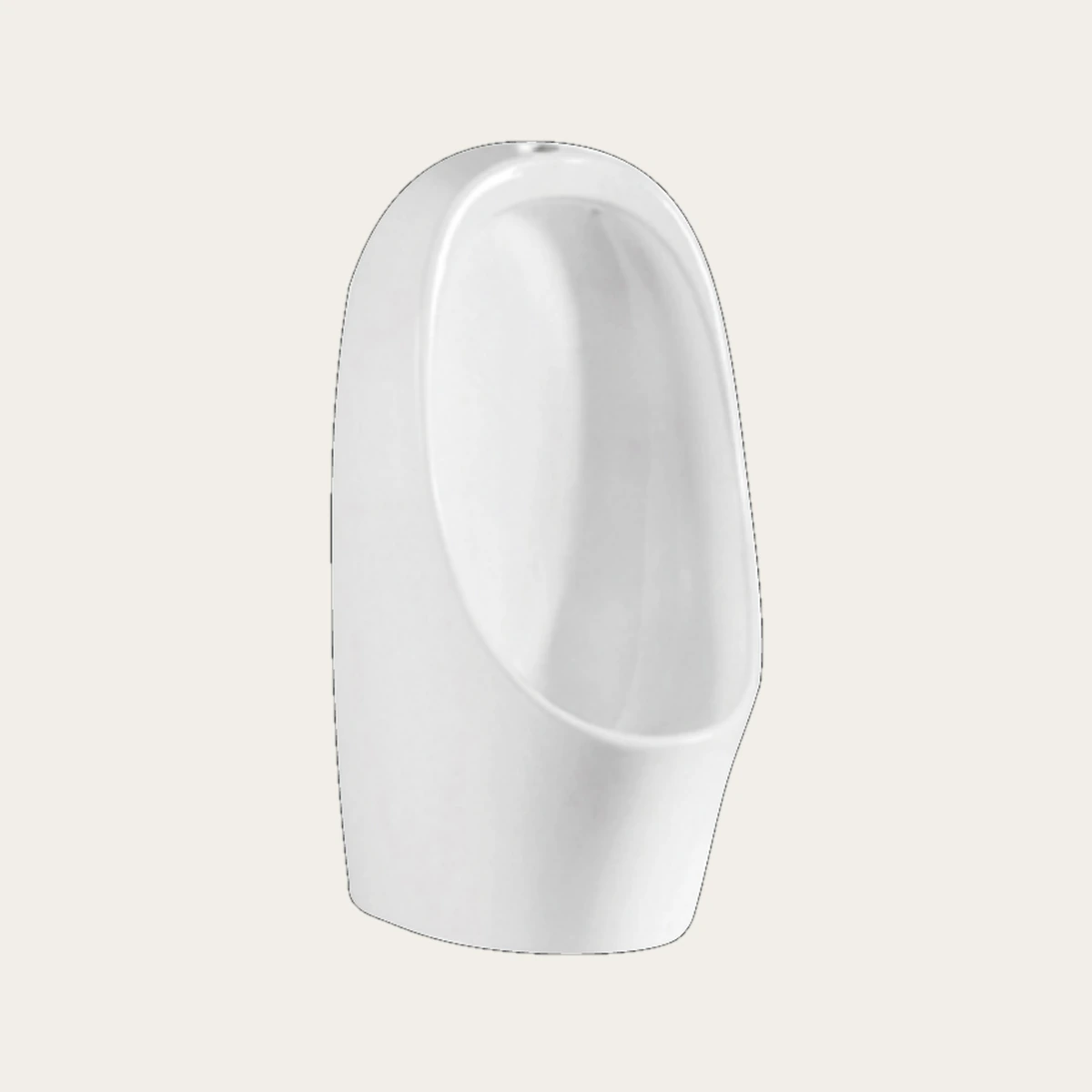

Model T5168-1 Wall-hung Urinal

Wall-hung ceramic urinal for commercial washroom projects, with catalogue-listed configuration options. Confirm inlet, drainage and flush-control requirements before quotation.

Catalogue source available · Final specification confirmation required.

SKU: T5168-1 Category: Urinals

Description

Product specifications

Model	T5168-1
Product type	Wall-hung urinal
Material	Ceramic
Dimensions	335 x 300 x 630 mm
Installation	Wall-hung, back-to-wall installation

Configuration options

T5168-1P	Flush control: No flush kit shown Drainage: Horizontal/vertical dual drainage Included / shown components: Mounting hook, Flexible/free drainage set
T5168-1P1	Flush control: Manual delayed-action valve Water inlet: Top inlet Drainage: Horizontal/vertical dual drainage Included / shown components: Manual delayed-action flush valve, Mounting hook, Flexible/free drainage set
T5168-1P1S	Flush control: Wall-mounted sensor kit Water inlet: Top inlet Drainage: Horizontal/vertical dual drainage Included / shown components: Wall-mounted sensor flush kit, Mounting hook, Flexible/free drainage set
T5168-1P7	Flush control: Cylindrical sensor flush valve Water inlet: Top inlet Drainage: Horizontal/vertical dual drainage Included / shown components: Cylindrical sensor flush valve, Mounting hook, Flexible/free drainage set

Catalogue source: Information and configuration options are transcribed from the supplied urinal catalogue. Final dimensions, inlet, drainage, sensor or flush-control selection and installation compatibility must be confirmed before quotation.
