Description
Product specifications

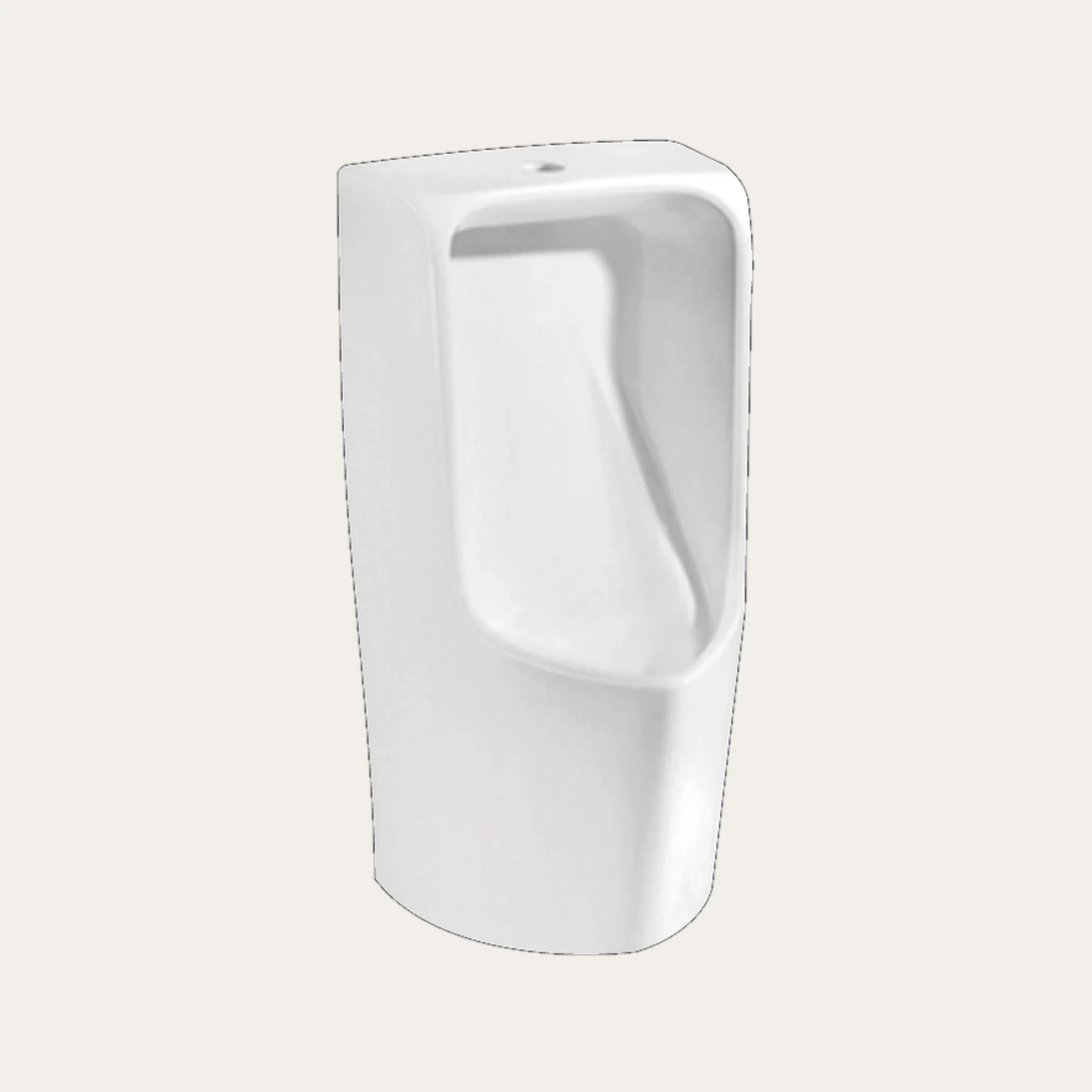

| Model | T5169 |
|---|---|
| Product type | Wall-hung urinal |
| Material | Ceramic |
| Dimensions | 380 x 320 x 770 mm |
| Installation | Wall-hung, back-to-wall installation |
Configuration options
| T5169PWP | Flush control: No flush kit shown Drainage: Wall drainage Included / shown components: Mounting hook, Mounting screws, Wall drainage connector |
|---|---|
| T5169PWP1 | Flush control: Manual delayed-action valve Water inlet: Rear inlet Drainage: Wall drainage Included / shown components: Manual delayed-action flush valve, Mounting hook, Mounting screws, Rear inlet fitting, Wall drainage connector |
| T5169PWP1S | Flush control: Wall-mounted sensor kit Water inlet: Top inlet Drainage: Wall drainage Included / shown components: Wall-mounted sensor flush kit, Mounting hook, Mounting screws, Wall drainage connector |
| T5169PWP1SH | Flush control: Wall-mounted sensor kit Water inlet: Rear inlet Drainage: Wall drainage Included / shown components: Wall-mounted sensor flush kit, Mounting hook, Mounting screws, Rear inlet fitting, Wall drainage connector |
Catalogue source: Information and configuration options are transcribed from the supplied urinal catalogue. Final dimensions, inlet, drainage, sensor or flush-control selection and installation compatibility must be confirmed before quotation.
